Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

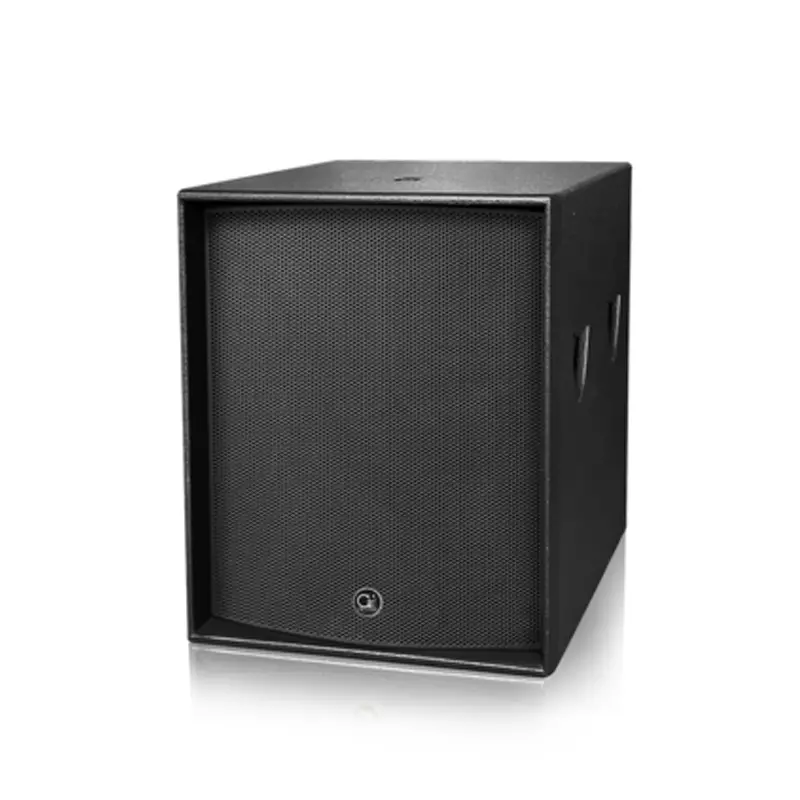

MODEL: TC-18A
| Drivers: | LF：1×18"Voice-coil：4" |
| Frequency(-10dB): | 40-220Hz |
| Dispersion(-6dB): | ---- |
| Sensitivity(1m/1W): | 97dB |
| Maximum SPL: | 129dB Continuous / 135dB Peak |
| Nominal Impedance: | 8 Ohms |
| Rated Power: | 1600W RMS/3200W Peak |
| Power amp: | 1200W/8 Ohms |
| Amplifier type: | Switched power amplifier, Class D circuit, with DSP/96K processing |
| Material: | High-quality double-layer birch plywood box |
| Mesh surface: | High strength pressed mesh surface,paste High strength pressed mesh surface,paste a special acoustic sponge mesh |
| Finish: | Environmental protection water-based paint |
| Connectors: | 2x Speakon XLR |
| Handing Position: | --- |
| Dimensions(H×Wx D): | 692mm×(562)mm×595mm |
| Net Weight: | 44.8 |

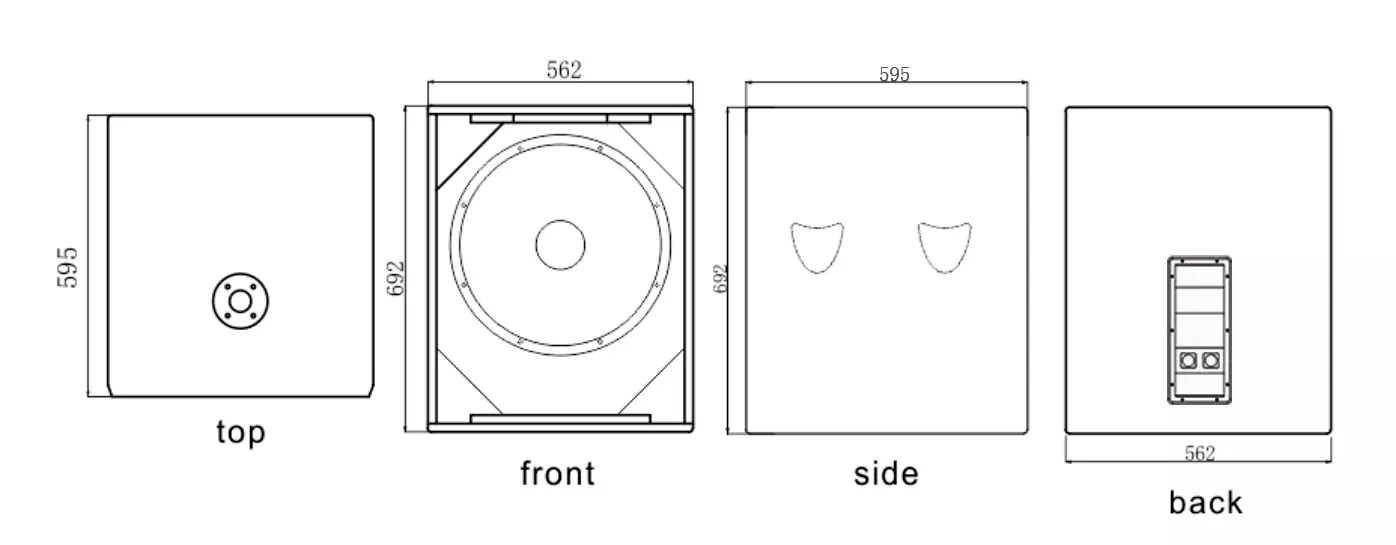

Constrction DraWing:
 |
